ET-09 mini pet tracker

Model: ET-09

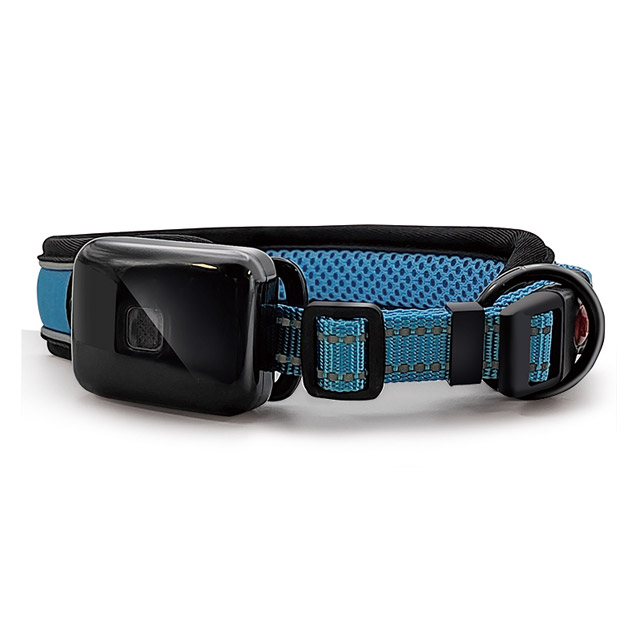

ET-09 is a mini tracker without external power connection mainly for pets or animals. It is small and could be waterproof.

Application fields:

Pets tracking, Animal monitoring, Asset tracking

Specification

-Size: 50*38*22 mm

-Input: DC 5V/2A

-GSM & GPRS features:

Quad band 850/900/1800/1900MHz

-GPS features:

Positioning precision: <5~10 m

-Lowest consumption: 1~3mA

-Battery capacity: 800mAh

Main features and functions

-Small size

-Support GPS, BDS and GLONASS

-Fast and accurate locating

-Static drift prevention

-Store data automatically when no

GPRS communication

-Intelligent power saving

-Waterproof

-SMS and online tracking

-History playback

-Geo fence

-Vibration & movement alarm

Size	503822 mm
Input	DC: DC 5V/2A
Working Temperature	-40~85°C
Humidity	10% to 90%
CPU	MT2503D(260MHz)
GSM & GPRS features	Highly precise and low noise RF transmitter for GSM/GPRS applications Transmitter outputs support quad bands: 850/900/1800/1900MHz GPRS class 12
GPS features	Built-in reset controller Superior sensitivities: Acq.: -148dBm(cold) / -163 dBm(hot) Tracking: -165 dBm Ultra-low power consumption Indoor and outdoor multi-path detection and compensation Support A-GPS Max. fixed update rate up to 10 Hz
LED indication	Red for GPS Blue for GPRS
Lowest consumption	1~3mA

Size	503822 mm
Input	DC: DC 5V/2A
Working Temperature	-40~85°C
Humidity	10% to 90%
CPU	MT2503D(260MHz)
GSM & GPRS features	Highly precise and low noise RF transmitter for GSM/GPRS applications Transmitter outputs support quad bands: 850/900/1800/1900MHz GPRS class 12
GPS features	Built-in reset controller Superior sensitivities: Acq.: -148dBm(cold) / -163 dBm(hot) Tracking: -165 dBm Ultra-low power consumption Indoor and outdoor multi-path detection and compensation Support A-GPS Max. fixed update rate up to 10 Hz
LED indication	Red for GPS Blue for GPRS
Lowest consumption	1~3mA
