ET-07
KingSword
Model: ET-07

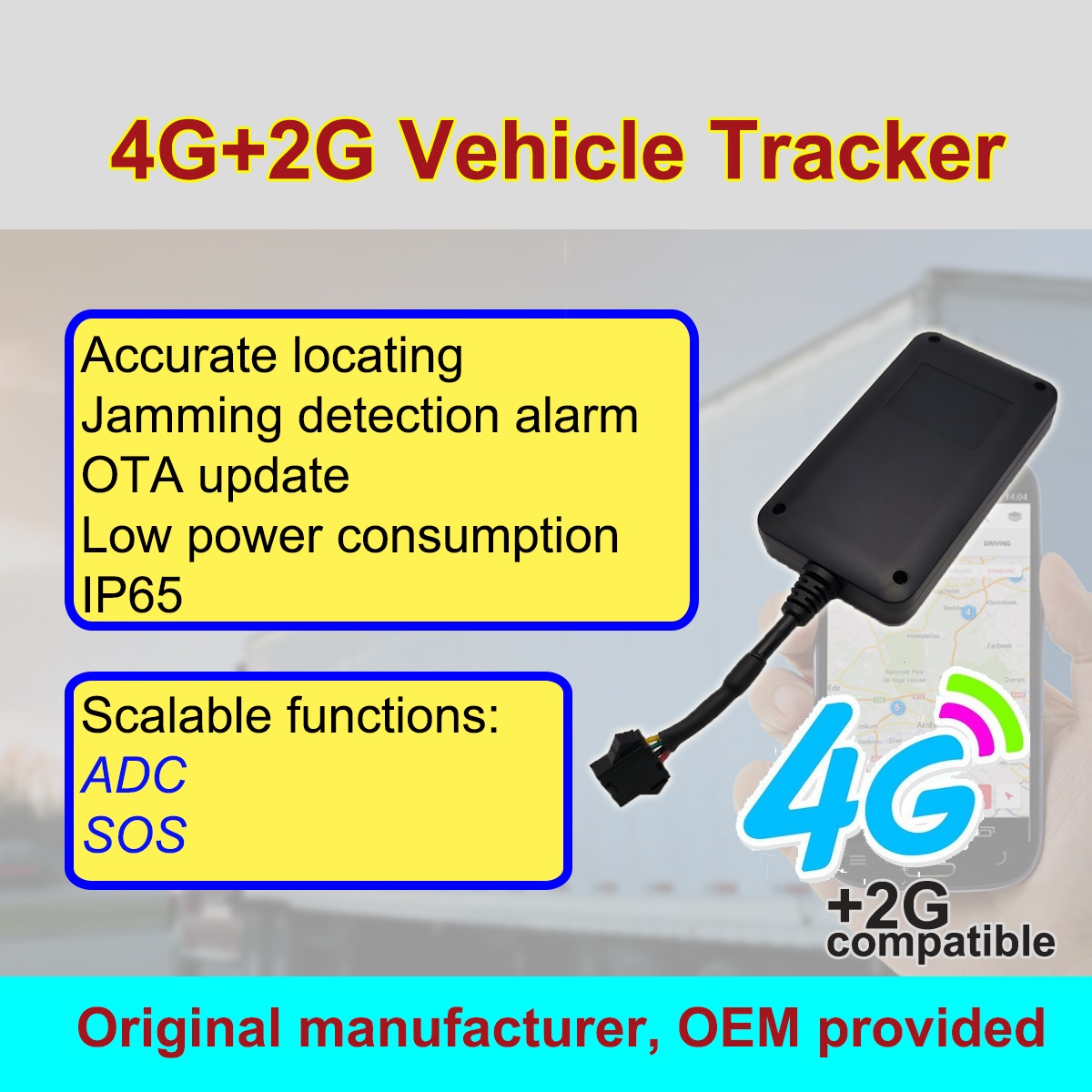

ET-07 is a 4g tracker mainly for vehicle. It supports extra I/Os to meet more function demands.
Application:
Fleet management, Public Transport, Auto Finance
Specification
-Size: 81*45*18mm
-Working Voltage: DC 8~100V
-Frequencies:
LTE-FDD: B1/B3/B5/B7/B8/B20/B28
LTE-TDD: B38/B40/B41
GSM: 850/900/1800/1900MHz
-GPS features:
Positioning precision: <5~10 m
-Lowest power consumption: 1~3mA
Main features and functions
-Network Type: LTE Cat 1
-Support GPS, BDS and GLONASS
-Fast and accurate locating
-Static drift prevention
-Store data automatically when no GPRS communication
-Built-in battery (240mAh)
-Low power consumption
-SMS and online tracking
-Driving history playback
-Geo fence
-Engine ignition detecting
-Remote control engine power
-External power cut alarm
-Vibration & movement alarm
-Over speed alarm
-SOS alarm (optional)
-Jamming detection (optional)
Model: ET-07
ET-07 is a 4g tracker mainly for vehicle. It supports extra I/Os to meet more function demands.
Application:
Fleet management, Public Transport, Auto Finance
Specification
-Size: 81*45*18mm
-Working Voltage: DC 8~100V
-Frequencies:
LTE-FDD: B1/B3/B5/B7/B8/B20/B28
LTE-TDD: B38/B40/B41
GSM: 850/900/1800/1900MHz
-GPS features:
Positioning precision: <5~10 m
-Lowest power consumption: 1~3mA
Main features and functions
-Network Type: LTE Cat 1
-Support GPS, BDS and GLONASS
-Fast and accurate locating
-Static drift prevention
-Store data automatically when no GPRS communication
-Built-in battery (240mAh)
-Low power consumption
-SMS and online tracking
-Driving history playback
-Geo fence
-Engine ignition detecting
-Remote control engine power
-External power cut alarm
-Vibration & movement alarm
-Over speed alarm
-SOS alarm (optional)
-Jamming detection (optional)
Specification
size | 82*45*16mm |
DC:8~100V | |
Input Fuse | 2A |
Working Temperature | -20~75°C |
Humidity | 10% to 90% |
CPU | EC600U-EU |
Re-acquisition sensitivity: -160dBm Tracking sensitivity: -162dBm Accuracy of locating: 2~10 meters Accuracy of speed calculation: <0.1m/s Updating rate of locating: 1~5Hz | |
I/O Port | Standard: 4 cables connection: (standard) 1. Positive 8V-100V. Red wire 2. Negative. Black wire 3. Output positive. Yellow wire 4. Input detection. Green wire Extensive connections: (optional) l ADC (read power voltage) l Input detection #2 l Output negative l SOS |
Current (@12V) | Sleep mode: 2~4mA working Current: 25~50mA |
Frequency bands:
LTE-FDD: B1/B3/B5/B7/B8/B20/B28
LTE-TDD: B38/B40/B41
GSM: 850/900/1800/1900MHz
Installation:
1. Red wire connects to positive 8V-100V。
2. Black wire connects to ground
3. Yellow wire connects to relay device. (should select relay according to vehicle baterry voltage)
4. Green wire connects to ACC or other alarm devices (that is to connect 8V-60V storage battery or impulse to access ACC and alarm mode)
1. Small size and easy installing
2. Support GPS and Beidou system
3. Fast and accurate locating
4. Static drift suppression
5. Store data automatically when no GPRS communication
6. Built-in battery (support 5 hours working time after external power is off)
7. Low power consumption
8. Built-in reset controller ensures system not get stuck
9. Support UDP & TCP communication
Main functions:
l Basic functions:
Position query
Alarm modes
Geo fence
Engine ignition detection
Remote control engine power
Mileage query and correction
Power saving mode
Jamming detection
SOS (optional)
l Settings:
Data upload interval
Time zone
Car plate name
SMS & GPRS switch
Alarm SMS switch
DNS
IP & port
TCP & UDP switch
l Alarms:
External power cut alarm
Vibration alarm
Movement alarm
Geo fence alarm
Over speed alarm
Low battery level alarm
Jamming detection alarm
SOS alarm (optional)
l Power saving mode:
Sleep by time
Wake up by shock sensor
l Checkings:
Firmware version
SIM card ICCID
Device working status
IMEI
l Network functions:
PC web/APP tracking
Real time tracking
Alarm record
History play back
Specification
size | 82*45*16mm |
DC:8~100V | |
Input Fuse | 2A |
Working Temperature | -20~75°C |
Humidity | 10% to 90% |
CPU | EC600U-EU |
Re-acquisition sensitivity: -160dBm Tracking sensitivity: -162dBm Accuracy of locating: 2~10 meters Accuracy of speed calculation: <0.1m/s Updating rate of locating: 1~5Hz | |
I/O Port | Standard: 4 cables connection: (standard) 1. Positive 8V-100V. Red wire 2. Negative. Black wire 3. Output positive. Yellow wire 4. Input detection. Green wire Extensive connections: (optional) l ADC (read power voltage) l Input detection #2 l Output negative l SOS |
Current (@12V) | Sleep mode: 2~4mA working Current: 25~50mA |
Frequency bands:
LTE-FDD: B1/B3/B5/B7/B8/B20/B28
LTE-TDD: B38/B40/B41
GSM: 850/900/1800/1900MHz
Installation:
1. Red wire connects to positive 8V-100V。
2. Black wire connects to ground
3. Yellow wire connects to relay device. (should select relay according to vehicle baterry voltage)
4. Green wire connects to ACC or other alarm devices (that is to connect 8V-60V storage battery or impulse to access ACC and alarm mode)
