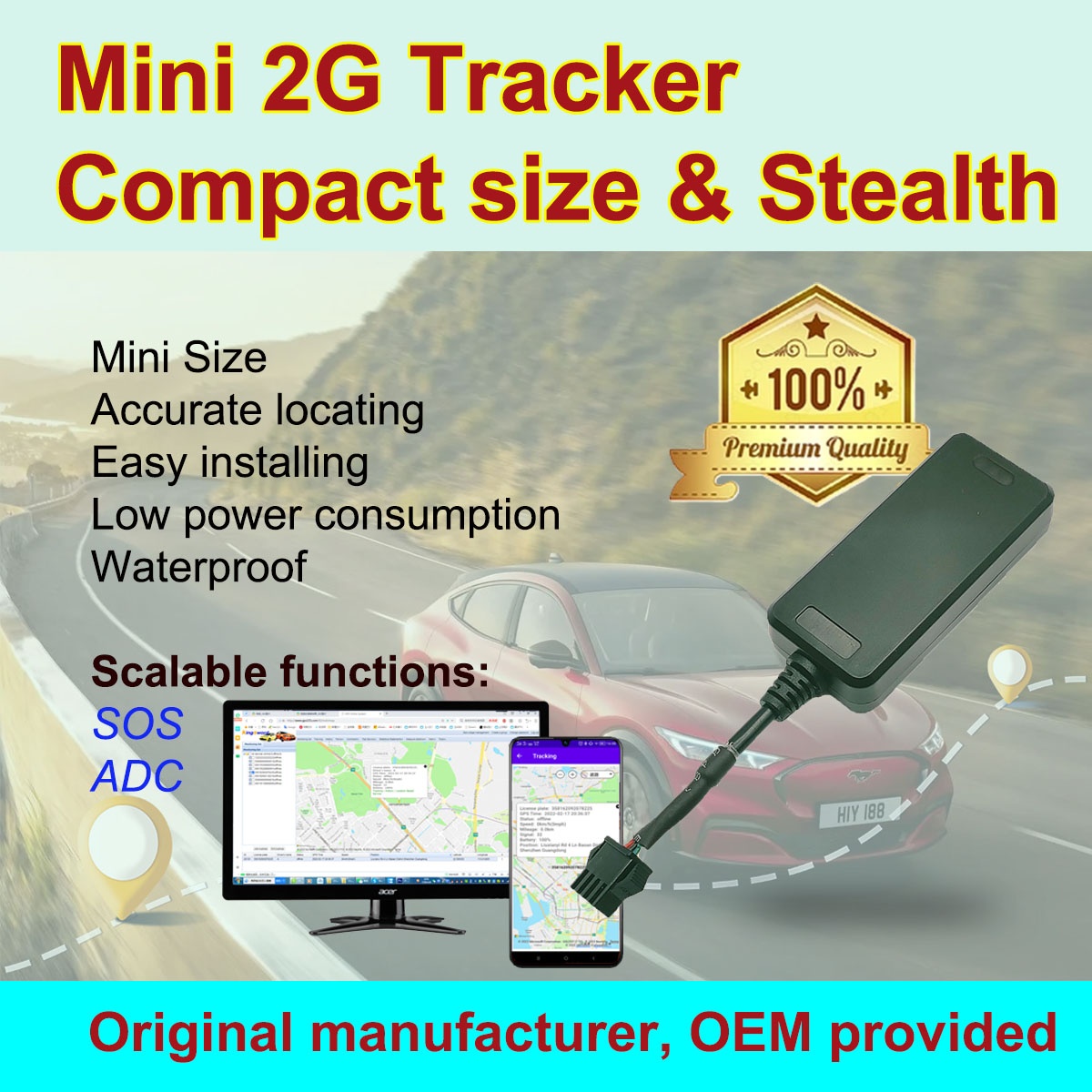

ET-03 mini waterproof tracker

Specification

size	68*31*15mm
Working Voltage	DC:6~30V
Input Fuse	2A
Working Temperature	-20~65°C
Humidity	10% to 90%
CPU	MT2503D(260MHz)
GSM & GPRS features	Highly precise and low noise RF transmitter   for GSM/GPRS applications Transmitter outputs support quad bands: 850/900/1800/1900MHz GPRS class 12
GPS features	Built-in reset controller Superior sensitivities: Acq.: -148dBm(cold) / -163 dBm(hot) Tracking: -165 dBm Ultra-low power consumption Indoor and outdoor multi-path detection and   compensation Support A-GPS Max. fixed update rate up to 10 Hz
I/O Port	4 cables connection 1.       Positive 6V-30V. Red wire 2.       Negative. Black wire 3.       Output positive. Yellow wire 4.       Input detection. Green wire
Current (@12V)	Sleep mode: below 2mA working Current: 25mA Charging current: Max<100mA

Installation:

1. Red wire connects to positive 6V-30V。

2. Black wire connects to ground

3. Yellow wire connects to relay device pin86. Pin85 connects to ground. Pin 30 and 87A connect to oil pump line in series.

4. Green wire connects to ACC or other alarm devices (that is to connect 6V-30V storage battery or impulse to access ACC and alarm mode)

Main features:

1.     Small size and easy installing

2.     Fast and accurate locating

3.     Static drift suppression

4.     Store data automatically when no GPRS communication

5.     Built-in battery (support 3 hours working time after external power is off)

6.     Low power consumption

7.     Built-in reset controller ensures system not get stuck

8.     Support UDP & TCP protocol

Main functions:

l  Basic functions:

     Position query

     Alarm modes

     Geo fence

     Engine ignition detection

     Remote control engine power

     Mileage query and correction

     Power saving mode

l  Settings:

     Data upload interval

     Time zone

     Car plate name

     SMS & GPRS switch

     Alarm SMS switch

     DNS

     IP & port

     TCP & UDP switch

l  Alarms:

     External power off alarm

     Vibration alarm

     Movement alarm

     Geo fence alarm

     Over speed alarm

     Low battery level alarm

l  Power saving mode:

     Sleep by time

     Wake up by shock sensor

l  Checkings:

     Firmware version

     SIM card ICCID

     Device working status

     IMEI

l  Other functions:

     Automatic update positions of vehicle turns

     Device reboot

     Virtual ignition by sensor

l  Network functions:

     PC web/APP tracking

     Real time tracking

     Alarm record

     History play back



Packaging detail:

Tracking device

Power cable

User manual

Gift box

Screw driver

Optional accessories:

Relay
